Bag Making Machine

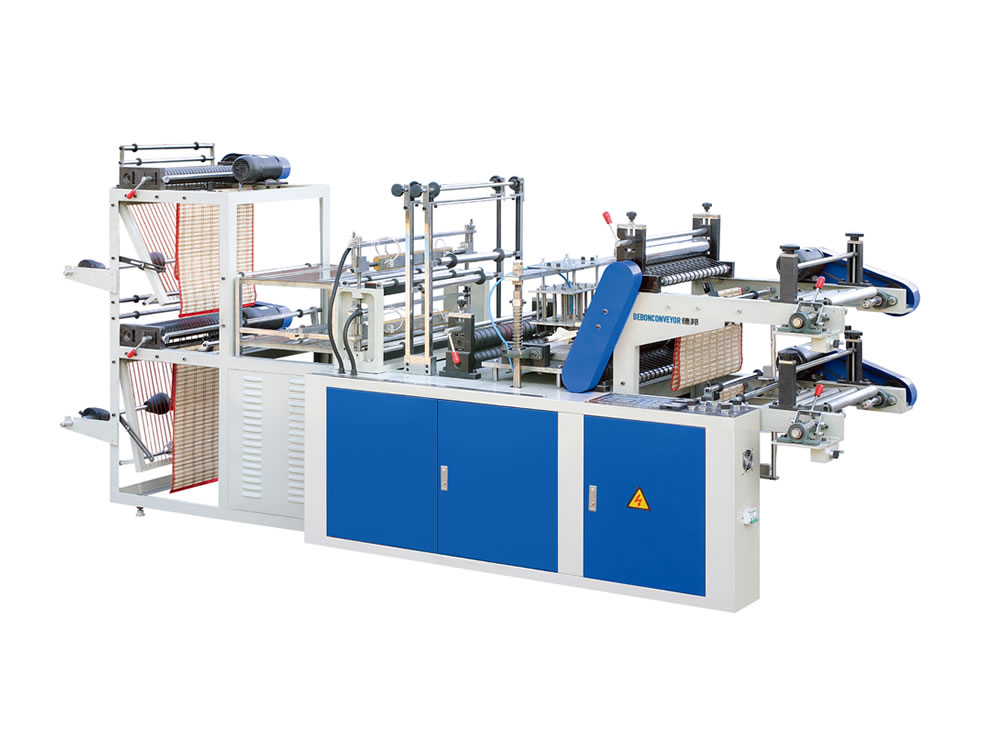

Computer Control High-speed Vest Rolling Bag-making Machine(Double layer)
Model: DB-600-800
Contact Details
WhatsApp
8613500095688
Email
info@debonmach.com
Address
Building D20, Zhihui Industrial Park, No. 33, Tingchao Road, Shangwang Street, Ruian City, Zhejiang Province-1-2
Introduction
The high and low density polyethyiene film bags produced by the machine are applied to shopping in the supermarkets,shops and markets.
This machine a specially-designed point-cut rolling dual-purpose forvest&flat bags, is controlled by a computer, the step(servo)setting length system reduces the sealing-cutting dimensions errors, and the installation of photoelectric eyes track help make the position of figure of printing bags accurately, the com-puter numerical control can be selected to adjust the length of bag the machine will automatically stop and sound a warning if there is something wrong with the printing bags.
This machine a specially-designed point-cut rolling dual-purpose forvest&flat bags, is controlled by a computer, the step(servo)setting length system reduces the sealing-cutting dimensions errors, and the installation of photoelectric eyes track help make the position of figure of printing bags accurately, the com-puter numerical control can be selected to adjust the length of bag the machine will automatically stop and sound a warning if there is something wrong with the printing bags.
| Model |
DB-500 |
DB-600 |
DB-800 |
|
Max.Width of bag-making |
400mm | 500mm | 700mm |
|
Max.Length of bag-making |
1200mm |
1200mm | 1200mm |
|
Bag-making Thickness |
0.008-0.15mm |
0.008-0.15mm |
0.008-0.10mm |
|
Speed of bag-making |
40-120pc/min |
40-120pc/min |
40-120pc/min |
|
Power of motor |
1.1Kw |
1.1Kw | 1.5Kw |
|
Electric Heating power |
1.2Kw | 1.6KW | 2 2Kw |
|
Packing Dimensions(LxWxH) |
3600x1200x1700mm |
3400x1300x1700mm | 3600x1500x1700mm |
| Machinery weight | 800Kg | 900Kg | 1000Kg |
